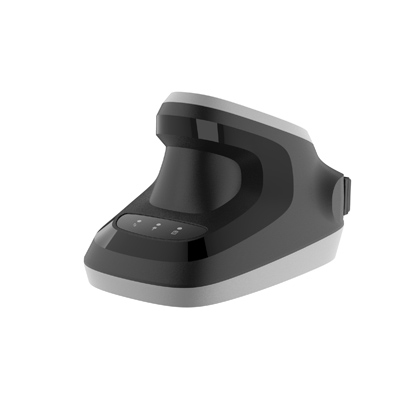

Wireless Bluetooth 2D Scanner 5203BT Industrial

The industrial version of the renowned 5203BT for general use, featuring new encapsulation that ensures greater robustness to withstand use in an industrial environment.

Low power consumption, high performance
Comprehensive reading of all mainstream 1-D, 2-D code
Quickly read the bar code on the phone screen
Supports RS232 interface and USB interface
The dual triangular Aimer automatically lights up to facilitate quick alignment of the bar code to be solved
Support the correction standard ECC200 for Datamatrix barcodes
Be compatible with Microsoft Windows 7 Professional Edition 32 and 64 bits, Windows 10 Pro 64 bits and Linux Kernel 3.19 or superior

Get a Quote

PDF Download

Overview
Details
Specifications

Wireless Bluetooth 2D Scanner 5203BT Industrial



Specifications of Wireless Bluetooth 2D Scanner 5203BT Industrial

Physical Characteristics
Dimensions	188mm x 90mm x 70mm
Weight	165g
Voltage/Current	5 VDC/ 350mA(opearting); 35mA(standby)

Performance Characteristics
Image(Pixels)			640 p(H) x 480 p(V)
Light Source			Aimer: 525nm green LED; illumination: 3500K white LED Good Read: 525nm blue LED
Field of View			40° (H) x 30° (V)
Scan Angle			Pitch ±65° Yaw 360° Roll ±60°
Symbol Contrast			≥25%
Interface			USB, RS232
Motion Tolerance			≥2m/s
Operating Distance			100m (250m in open conditions)
Endurance Time			24.5H (scan the bar code 17,650 times at an interval of 5 seconds)
Charging Time			Support fast charging, the whole charging time is 2.5H, and the single battery charging time is 2H
Bluetooth			Bluetooth 5.0
Symbologies	1D	Code 128, Code 39, Code 93, EAN-8, EAN-13, UPC-E, UPC-A, GS1-128, Codabar, Interleaved 2 of 5, GS1 DataBar
	2D			PDF417, QR Code, Micro QR, Data Matrix

User Environment
Operating Temperature	32°F ~ 122°F / 0°C ~ 50°C
Storage Temperature	-40°F ~ 158°F / -40°C ~ 70°C
Drop Resistance	Withstand drop 1.8m on concrete
Humidity	5% ~ 95%, non-condensing
Waterproof Class	IP65
Ambient Light Immunity	86,000 Lux.
