Welcome to SUPERLEAD
Bluetooth 5.0
Solid explosion-proof
Large field of view
Accurate red light sight
Ergonomic design
High capacity battery, optional USB and contact charging
250m distance communication（Open area）
Omni-directional Read main 1D,2D barcode
warehousing and logistics, scientific research and testing, medical and pharmaceutical, chemical industry, public utilities, transportation, etc

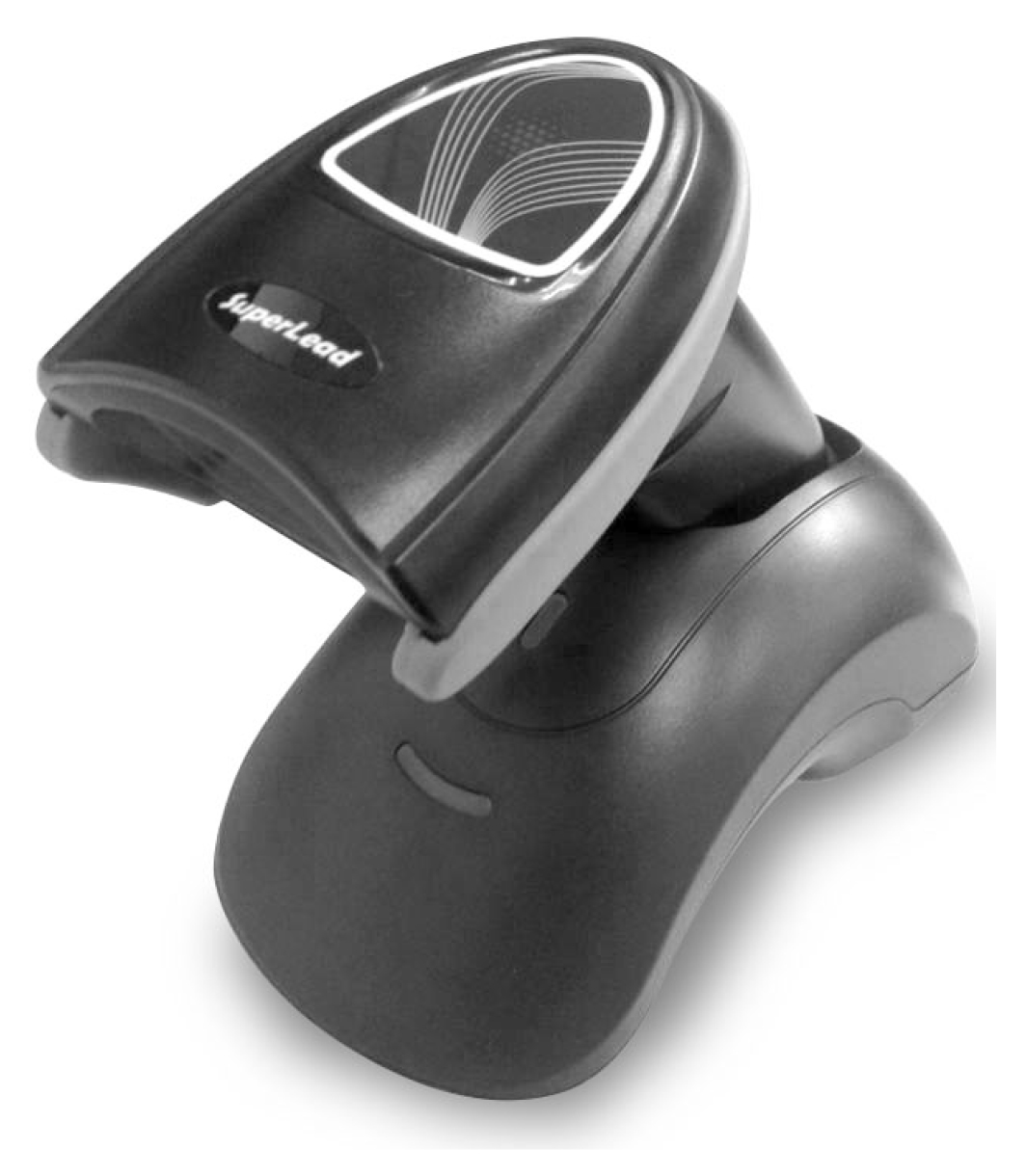

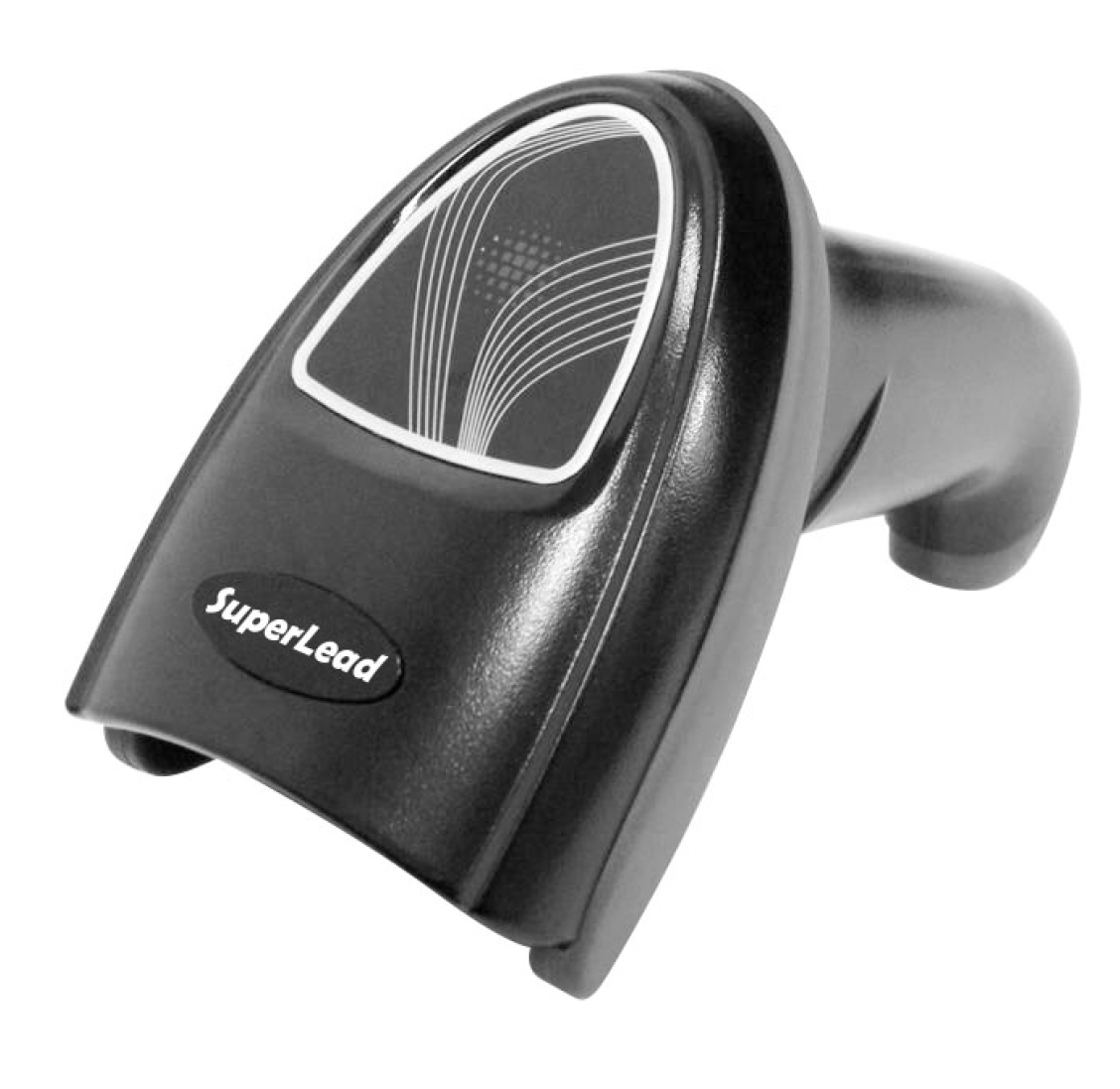

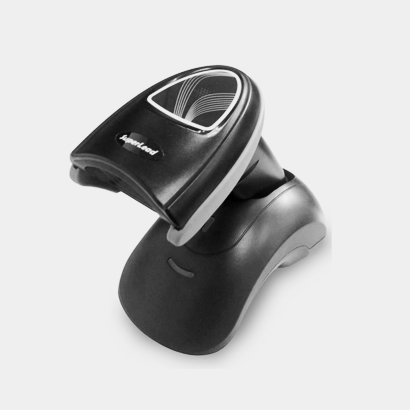

| Suzhou SuperMax Smart System Co., Ltd. | 5200H Technical Specification | |
| Physical Characteristics | ||
| Dimensions | 207mm x 82mm x 109mm | |
| Weight | 475g | |
| Voltage/current | 5 VDC +/-10% @ 500 mA | |
| Performance Characteristics | ||
| Sensor Pixels | 640 pixels (H)x 480 pixels (V) | |
| Light Source Illumination | Aiming: 617 nm LED; illumination: 625nm LED | |
| Field of View Angle | 40° (H) x 31.5°（V） | |
| Roll / Pitch / Yaw | 360°, ±65°, ±60° | |
| Motion Tolerance | up to 5M per second | |
| Battery Capacity | 4.2v/2600mAh | |
| Endurance | It can scan once every 1 second and work continuously for 12 hours. | |
| Wireless Technology | Bluetooth 5.0 | |
| Operating Distance | Up to 250 meters (open space) | |
| Interface Support | USB, OTA, RS232 | |
| Print Contrast | 25% minimum reflective difference | |
| Symbology Decode Capability | 2D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
| 1D | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. | |
| Decode Ranges | ||
| 1D Minimal Resolution | 3mil | |
| Code 39 (5mil) | 30mm-100mm | |
| 100% UPC-A(13mil) | 40mm-270mm | |
| User Environment | ||
| Working Temperature | 0℃~50℃ | |
| Storage Temperature | -40℃~70℃ | |
| Humidity | Relative humidity 0%~95%, no condensation | |
| Anti Vibration | Designed to withstand 1.5m(5') drops | |
| Environmental Photoimmunity | 100.000 Lux | |
