Super large scanning window
self-induction image reading
Megapixel, scanning sensitive
Support 6m / s sports reading
Low power consumption and powerful performance
Omni-directional Read main 1D,2D barcode
New hardware upgrade, equipped with 1.38 million pixel scanning lens.
Super large scanning window, no need to focus, self-induction image reading.
Big vision sensor, large reading range, Easy to read long bar code
Support sports reading, up to 6M/S, sensitive scanning
Support barcode reading without backlight
Multi-languages direct transfer.
The optical scanner can scan 1D/2D barcodes, support screen codes, as : packaging, labels, express waybill, wechat, alipay, etc.
Shopping malls, supermarkets, restaurants, tea shops, small and micro stores, warehousing and logistics, customer service front desk, etc
A QR code works by encoding data into a two-dimensional matrix of black and white squares, which can be quickly scanned and decoded.
Creation: Data such as URLs, text, contact information, or payment details is encoded into a QR code using a QR code generator. The data is converted into a pattern of squares.
Scanning: A QR code scanner or a smartphone camera captures the image of the QR code. Modern smartphones often have built-in QR code scanning capabilities within their camera apps.
Decoding: The scanner’s software processes the captured image, interpreting the pattern of black and white squares. The arrangement of these squares represents binary data, which the software decodes into human-readable information.
Data Access: The decoded information is then displayed or executed on the device. For example, a URL might open in a web browser, text might be displayed, or contact information might be saved.
This process allows for quick and efficient data retrieval, making QR codes a powerful tool for marketing, payments, and information sharing.

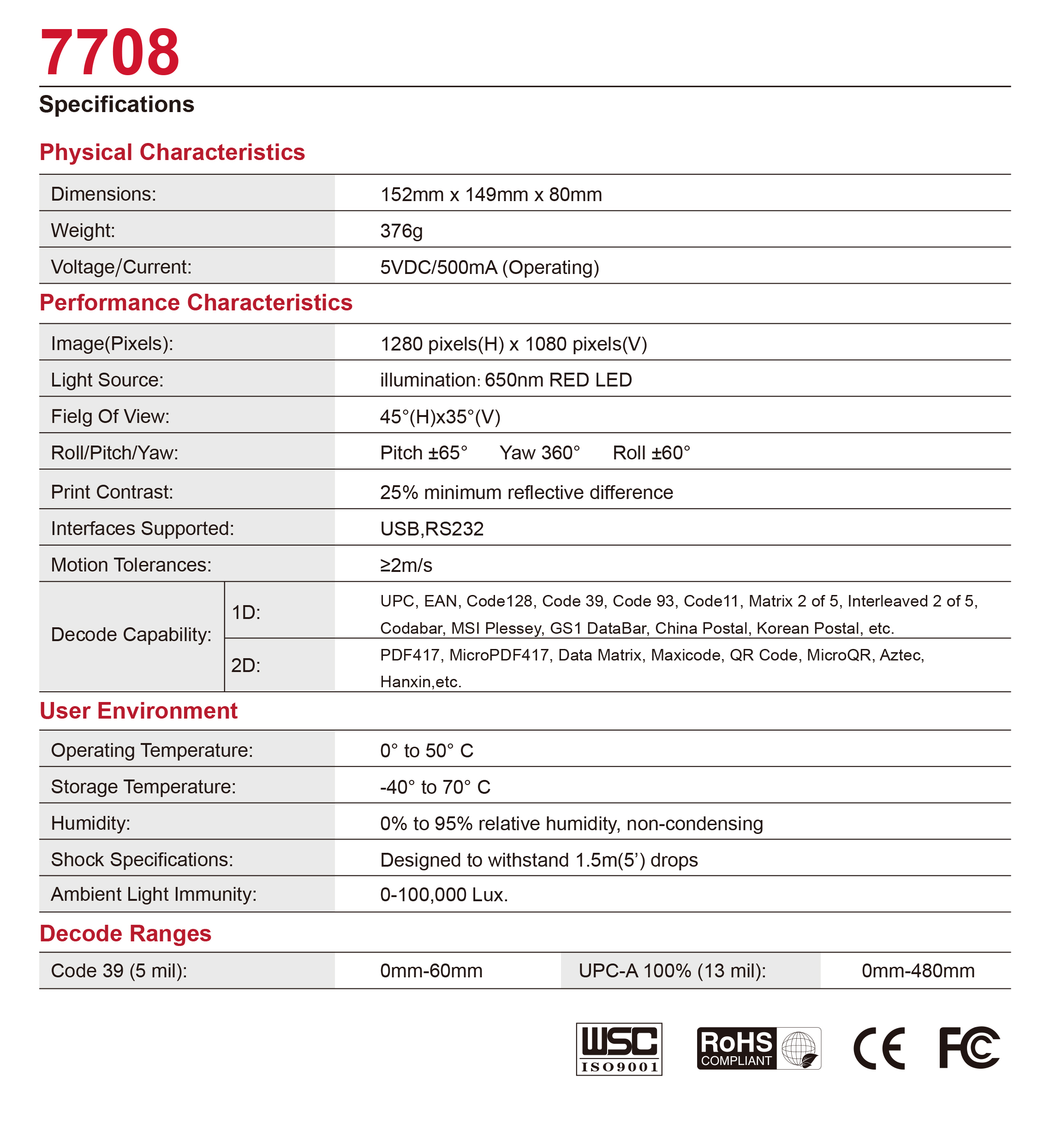

Suzhou SuperMax Smart System Co., Ltd. | 7708 | |
Physical Characteristics | ||
Dimensions: | 152mm x 149mm x 80mm | |
Weight: | 376g | |
Voltage: | 5 VDC | |
Current: | 500mA(Operating) | |
Performance Characteristics | ||
Image(Pixels): | 1280 p(H) x 1080 p(V) | |
Light Source: | illumination: 617nm RED LED | |
Fielg of View: | 45° (H) x 35° (V) | |
Roll/Pitch/Yaw: | Pitch ±65° /Yaw 360° /Roll ±60° | |
Motion Tolerances: | max. 6m/s / up to 6 meters per second | |
Print Contrast: | ≥25% | |
Interfaces Supported: | USB, RS232 | |
Minimal Resolution: | 4mil | |
Decode Capability: | 1-D: | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc. |
2-D: | QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc. | |
User Environment | ||
Operating Temperature: | 0℃-50℃ | |
Storage Temperature: | -40℃-70℃ | |
Humidity: | 0% to 95% relative humidity, non-condensing | |
Shock Specifications: | Designed to withstand 1.2m (5') drops | |
Ambient Light lmmunity: | 100.000 Lux. | |
Decode Ranges | ||
Code 39 (5mil): | 0mm-60mm | |
100% UPC-A (13mil): | 0mm-200mm | |
Performance may be impacted by bar code quality and environmental conditions. | ||
