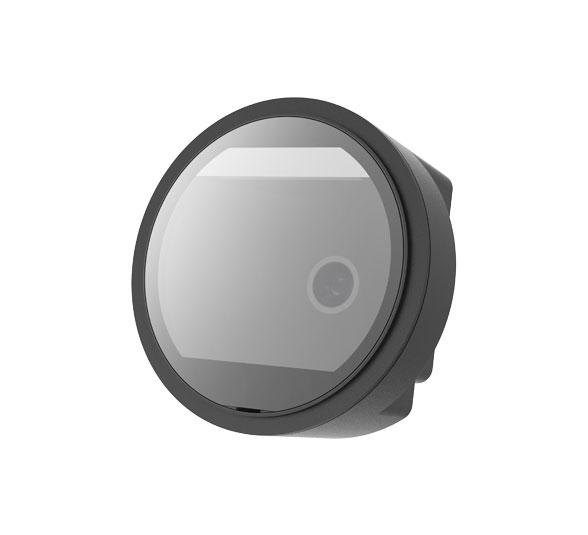

Flexible embedded design, easy for integration.
Big vision sensor, large reading range
self-induction image reading
Support motion reading, up to 6M / S
Personalized appearance, support customized development
Multiple language barcode information direct transmission
Super large scanning window, no need to focus, self-induction image reading.
Big vision sensor, large reading range.
Support sports reading, up to 6M/S, sensitive scanning
Support barcode reading without backlight
Multi-languages direct transfer.
Can scan 1D/2D barcodes, support screen codes, as packaging, labels, express waybill, WeChat, Alipay, etc.
| Suzhou SuperMax Smart System Co., Ltd. | 73IS-HPS Technical Specification | |
| Physical Characteristics | ||
| Dimensions: | 96mm x 96mm x 56mm | |
| Weight: | 460g | |
| Voltage: | 5 VDC | |
| Current: | 500mA(Operating) | |
| Performance Characteristics | ||
| Image(Pixels): | 1280 p(H) x 1080 p(V) / 640 p(H) x 480 p(V) | |
| Light Source: | illumination: 650nm RED LED | |
| Fielg of View: | Horizontal (H) ≥ 50°, Vertical (V) ≥ 35° | |
| Roll/Pitch/Yaw: | Pitch ±65° /Yaw 360° /Roll ±60° | |
| Motion Tolerances: | Max. 6m/s / up to 6 meters per second | |
| Print Contrast: | ≥25% | |
| Interfaces Supported: | USB, RS232 | |
| Minimal Resolution: | ≥3.9mil | |
| Decode Capability: | 1D: | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5,Interleaved 2 of 5, Codabar, etc. |
| 2D: | QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc. | |
| User Environment | ||
| Operating Temperature: | 0℃-50℃ | |
| Storage Temperature: | -40℃-70℃ | |
| Humidity: | 0% to 95% relative humidity,non-condensing | |
| Shock Specifications: | Designed to withstand 1.5m (5') drops | |
| Ambient Light Immunity: | 100.000 Lux. | |
| Decode Ranges | ||
| Code 39 (5 mil): | 0mm-60mm | |
| 100% Upca (13 mil): | 0mm-200mm | |
Performance may be impacted by bar code quality and environmental conditions. Note: If the above parameters are changed, the latest data shall prevail. | ||
